  • GTO-SCM03P

  • GTO-SCM03P

    0.3MP 480P Serial Jpeg Camera Module

    1) VC0706 Protocol
    2) TTL/RS232/RS485 Interface
    3) 38400-115200bps Baud Rate
    4) Low Power Consumption

    • 0.00
      0.00
Product Description

0.3MP 480P Serial Jpeg Camera Module

1) VC0706 Protocol
2) TTL/RS232/RS485 Interface
3) 38400-115200bps Baud Rate
4) Low Power Consumption


Features


*0.3MP FHD Resolutions, Max up to 640x480

*Support TTL/RS232/RS485 Interface

*VC0706 Protocol

*Baud Rate support 38400—115200bps

*Small Outline for embedded Application

Camera Introduction

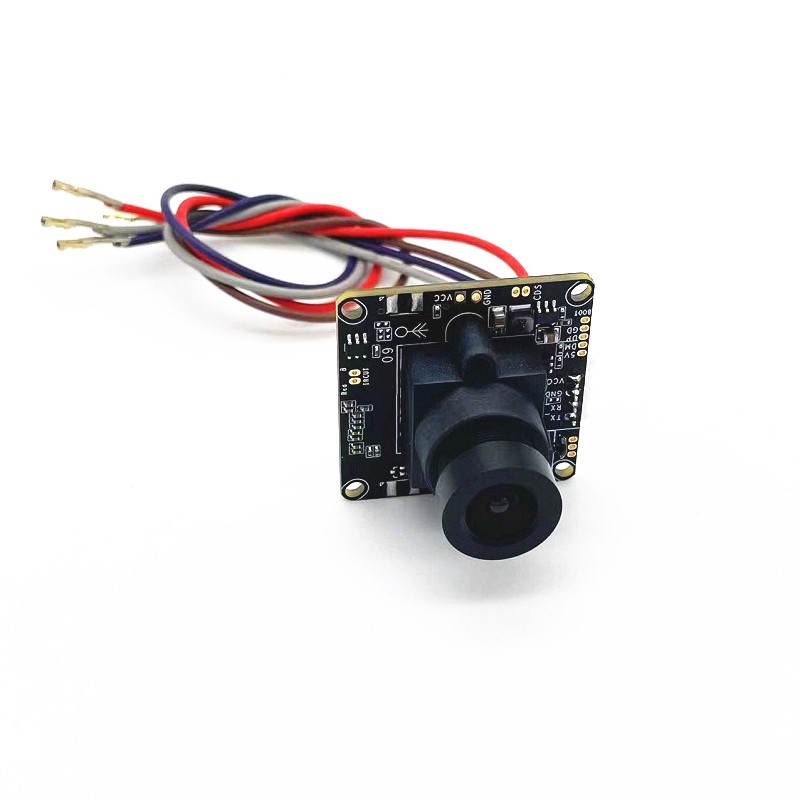

GTO-SCM03P Camera is a highly integrated serial JPEG camera module which can be attached to any host system that requires a JPEG compressed still camera for embedded imaging applications. The module uses a 1/4’’ CMOS color image sensor along with a DSP chip that provides a low cost and low powered camera system. The module has an on-board serial interface (TTL/RS232/RS485) that is suitable for a direct connection to any host microcontroller UART or a PC system COM port.


The GTO-SCM03P camera is capable of outputting JPEG format images only.


The GTO-SCM03P camera module comes in a compact form factor with a built in lens and a 4 pin PH 2.0 connector that provides easy access to both power and serial data. PC test tool is provided for easy testing.




Specification

Image Device

CMOS Image Sensor

Serial Output

TTL/RS232/RS485

Pixel

0.3 Mega Pixels

Image Resolution

640x480

320x240

160x120

Image Compression

MJPEG/JPEG

Baud Rate

38400—115200bps for selection

Focal Length

3.6 mm (default), 2.8mm/6.0mm/8.0mm available

Angle of View

90°(Default), 120°/60°/45°available

Minimum Illumination

0.1 LUX

WDR

60DB

IR Illumination

Default not available, 12 or 24pcs 850nm/940nm IR

LED board can be customized upon request

IR-Cut Filter

(IR Filter)

Default at 650nm, custom options 850,940nm.

Night Vision

N/A

Night Vision Range

N/A

Protocol

VC0706

Exposure

Auto

White Blance

Auto

Auto Gain Control

Auto

Cable Length

20CM (7.8in) 4 pin wires (Default), other upon request

Pin Configuration

RS232(TX,RX,GND,5V)

RS485(A,B,GND,5V)

TTL(TX,RX,GND,5V)

Connector

Default 4 bare wires, other connectors upon request

Waterproof

Subject to the housing/enclosure

PC Test Tool

Serail JPEG Camera Test Tool V1.07_20191220.exe


General

Power Supply

5V DC (default), custom option 12V DC

Operating Temp.

-20°C~+60°C

Storage Temp.

-30°C~+70°C

Humidity

Less than 80%

Dimension

32mm (L) x 32mm (W) x 28mm (H)

Weight

Approx. 9 Grams or 0.3 Ounce
