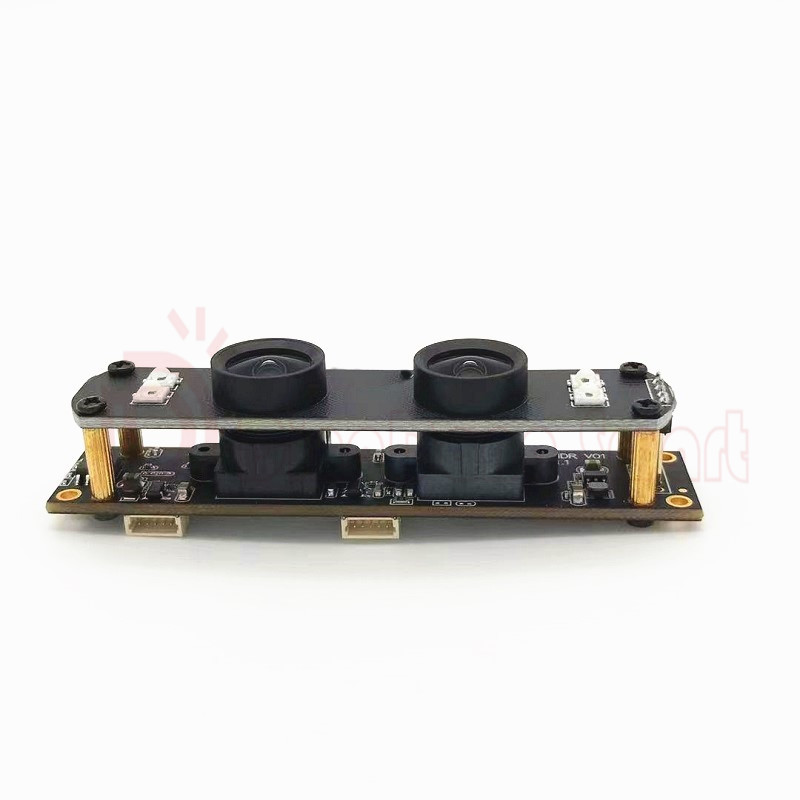

    TOF 3D Depth 5.0MP 2592x1944 USB 2.0 Camera Module With Dual Lens

    1) 2592x1944P MJPEG @30FPS
    2) High Speed USB 2.0 interface
    3) Two Separate Camera Output
    4) 4Pcs IR leds
    5) Free Driver,Plug&Play


    • 0.00
      0.00
Product Description

TOF 3D Depth 5.0MP 2592x1944 USB 2.0 Camera Module With Dual Lens

1) 2592x1944P MJPEG @30FPS
2) High Speed USB 2.0 interface
3) Two Separate Camera Output
4) 4Pcs IR leds
5) Free Driver,Plug&Play


Features


*5.0MP 1944P Resolutions with Dual Lens

*Use for 3D Depth,Face Recognition

*Support Plug-&-Play (UVC compliant) OTG Function.

*High Speed USB 2.0

*Small Outline for embedded Application




Specification

Image Device

5MP WDR Cmos Image Sensor

Resolution

5.0MP 2592(H) x 1944(V)

Output Format

MJPEG/YUY2

Shutter Type

Rolling Shutter

Image Tpye

One camera is Color, another camera is Monochrome Black White

Focus

Manually

Focusing Range

20mm to Infinity

Protocol& Connection

Plug-&-Play (UVC compliant)

Frame Rate

2592x1944   MJPEG @30fps   YUY2 @3fps

2560x1440   MJPEG @30fps   YUY2 @3fps

2048x1536   MJPEG @30fps   YUY2 @3fps

1920x1080   MJPEG @30fps   YUY2 @3fps

1600x1200   MJPEG @30fps   YUY2 @5fps

1280x720    MJPEG @30fps   YUY2 @5fps

1024x768    MJPEG @30fps   YUY2 @10fps

800x600     MJPEG @30fps   YUY2 @10fps

640x480    MJPEG @30fps   YUY2 @5fps

Non-Synchronization

Showing two image at scene

Interface

USB2.0

OTG

Support

Lens

Default Distortionless Lens,Custom options 2.1mm, 3.6mm, 6mm, 8mm, 12mm, 16mm, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye and others upon request

WDR

Up to 105dB

IR-Cut Filter

(IR Filter)

Default at 650nm, custom options 850,940nm.

Night Vision

8meter

Controllable Features

Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,White balance,Backlight Contrast,Exposure

IR Illumination

4Pcs IR leds

Power Socket

USB BUS Power

Application

Face Recognition, Biopsy Detection, 3D, VR

Cable Length

Default 1.0Meter (others upon request)

Supported OS

Win XP/Vista/Win7/Win8/Win10

Linux with UVC (linux-2.6.26 or later)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or higher with UVC



General

Power Consumption

DC5V (±5%)

Operating Temp.

-20°C~+70°C

Storage Temp.

-30°C~+80°C

Humidity

Less than 80%

Dimension

80x16mm

Weight

Approx. 200g





Application or Tools

Windows OS

AMCAP etc.

Linux OS

V4L2 etc.

Mac OS

Facetime etc.

Android OS

CameraFi etc.
