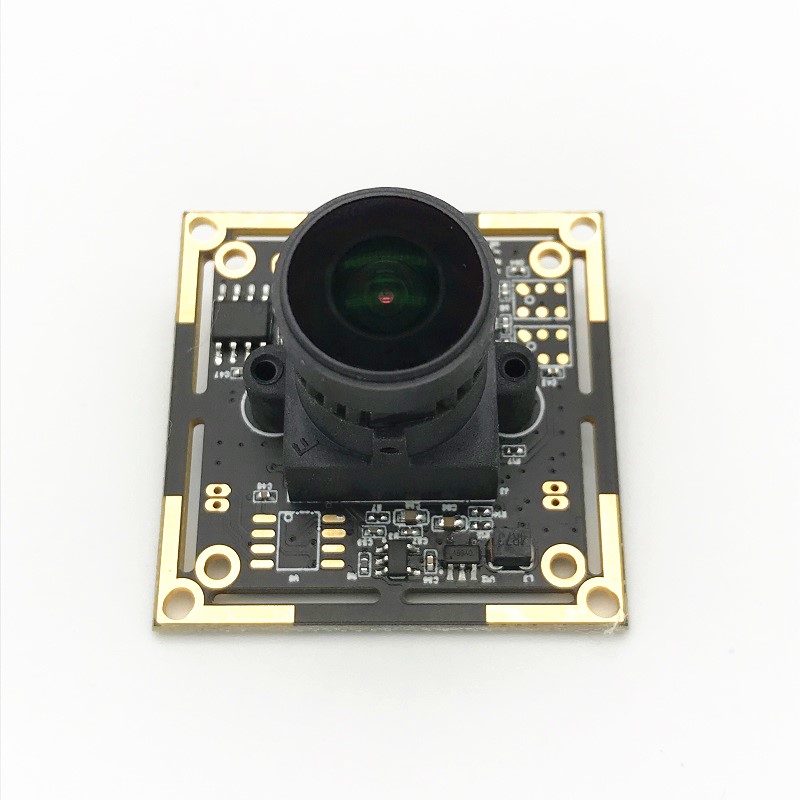

Image Device

AR0230 Image Cmos Sensor

Resolution

2 MP 1920(H) x 1080(V)

Output Format

MJPEG / YUY2

Shutter Type

Electronic Rolling Shutter

Focus

Manually

Focusing Range

20mm to Infinity

Protocol& Connection

Plug-&-Play (UVC compliant)

Frame Rate

640X360      MJPEG @30fps

640X480      MJPEG @30fps     YUY2 @30fps

800X600      MJPEG @30fps

1024X768     MJPEG @30fps

1280X720     MJPEG @30fps     YUY2 @15fps

1280X960     MJPEG @30fps

1920X1080    MJPEG @30fps     YUY2 @5fps

OTG

Support

Minimum Illumination

0.1 LUX

WDR

100 dB @ 16x gain

Lens

Default 3.6MM lens, Custom options 2.1mm, 2.8mm, 6mm, 8mm, 12mm, 16mm, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye and others upon request

IR-Cut Filter

(IR Filter)

Default at 650nm, custom options 850,940nm.

Night Vision

Supported with the use of white flash LED’s ONLY

Controllable Features

Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,White balance,Backlight Contrast,Exposure

IR Illumination

Default not available, 12 or 24pcs 850nm/940nm IR

LED board can be added upon request

Power Socket

4Pin Socket, USB BUS Power

Cable Length

Default 1.0Meter (others upon request)

Supported OS

Win XP/Vista/Win7/Win8/Win10

Linux with UVC (linux-2.6.26 or later)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or higher with UVC

Power Consumption

DC5V (±5%), 150~200mA

Operating Temp.

-20°C~+70°C

Storage Temp.

-30°C~+80°C

Humidity

Less than 80%

Dimension

38x38mm(Mount Compatible with 32x32mm)

Weight

Approx. 12 Grams or 0.4 Ounce

Windows OS

AMCAP etc.

Linux OS

V4L2 etc.

Mac OS

Facetime etc.

Android OS

CameraFi etc.
