    Dual Lens 4MP OmniVision OG02B10 Global Shutter USB2.0 Camera Module

    1) (2x1600)x1200p MJPEG @60FPS
    2) High Speed USB2.0 interface
    3) Synchronized Dual Lens Vision
    4) Free Driver,Plug&Play


    • 0.00
      0.00
Product Description

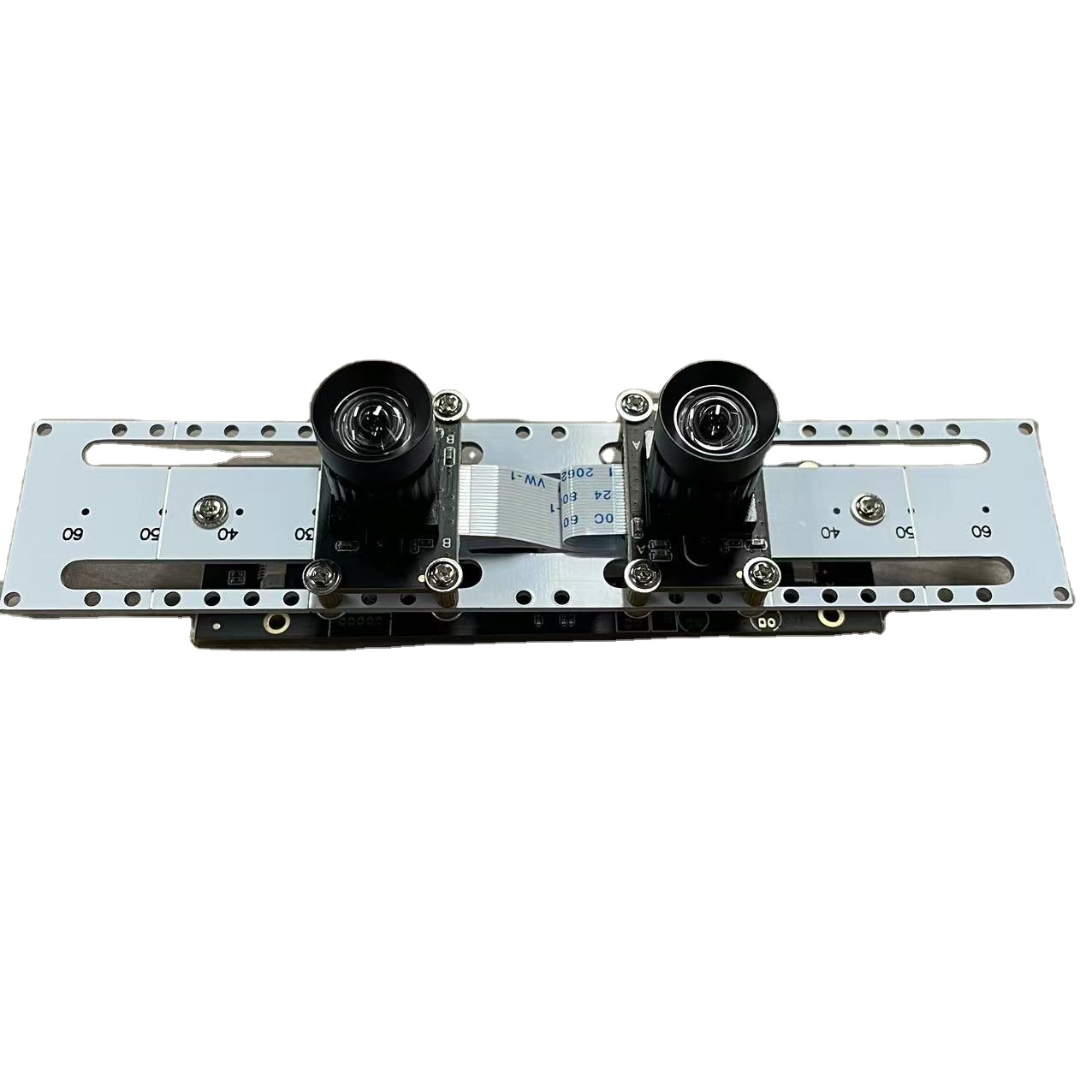

Dual Lens 4MP OmniVision OG02B10 Global Shutter USB2.0 Camera Module

1) (2x1600)x1200p MJPEG @60FPS
2) High Speed USB2.0 interface
3) Synchronized Dual Lens Vision
4) Free Driver,Plug&Play


Features


*4.0MP 3200x1200 Resolutions with Dual Lens

*(2x1600)x1200P @60FPS Global Shutter Sensor

*Synchronization Technology

*Support Plug-&-Play (UVC compliant) OTG Function.

*High Speed USB 2.0

*Small Outline for embedded Application

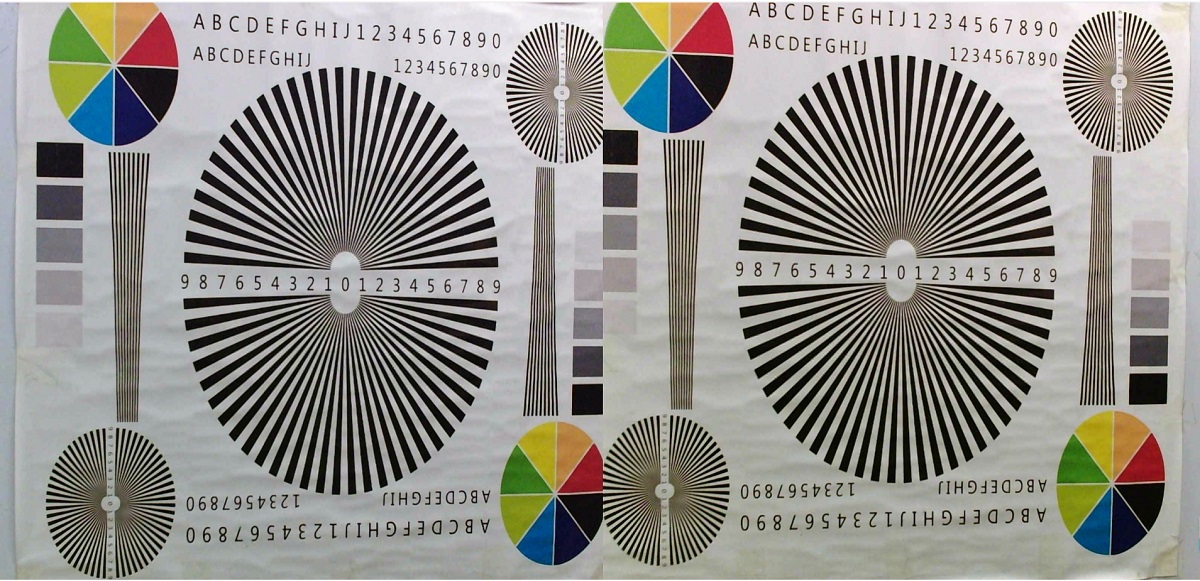

Camera LiveView






                                 Specification

Image Device

Cmos Sensor 1/2.9” OG02B10

Pixel Size

3μm x 3μm

Resolution

2MP 2x(1600(H) x 1200(V))

Output Format

MJPEG/YUY2

Shutter Type

Global Shutter

Focus

Manually

Focusing Range

20mm to Infinity

Protocol& Connection

Plug-&-Play (UVC compliant)

Frame Rate

(2x1600)x1200   MJPEG @60fps    YUY2 @1fps

(2x1280)x720    MJPEG @60fps    YUY2 @1fps

Interface

USB2.0

OTG

Support

Lens

Default No-Distortion Lens,Other can be optional

IR-Cut Filter

(IR Filter)

Default at 650nm, custom options 850,940nm.

Night Vision

N/A

IR Illumination

N/A

Power Socket

USB BUS Power

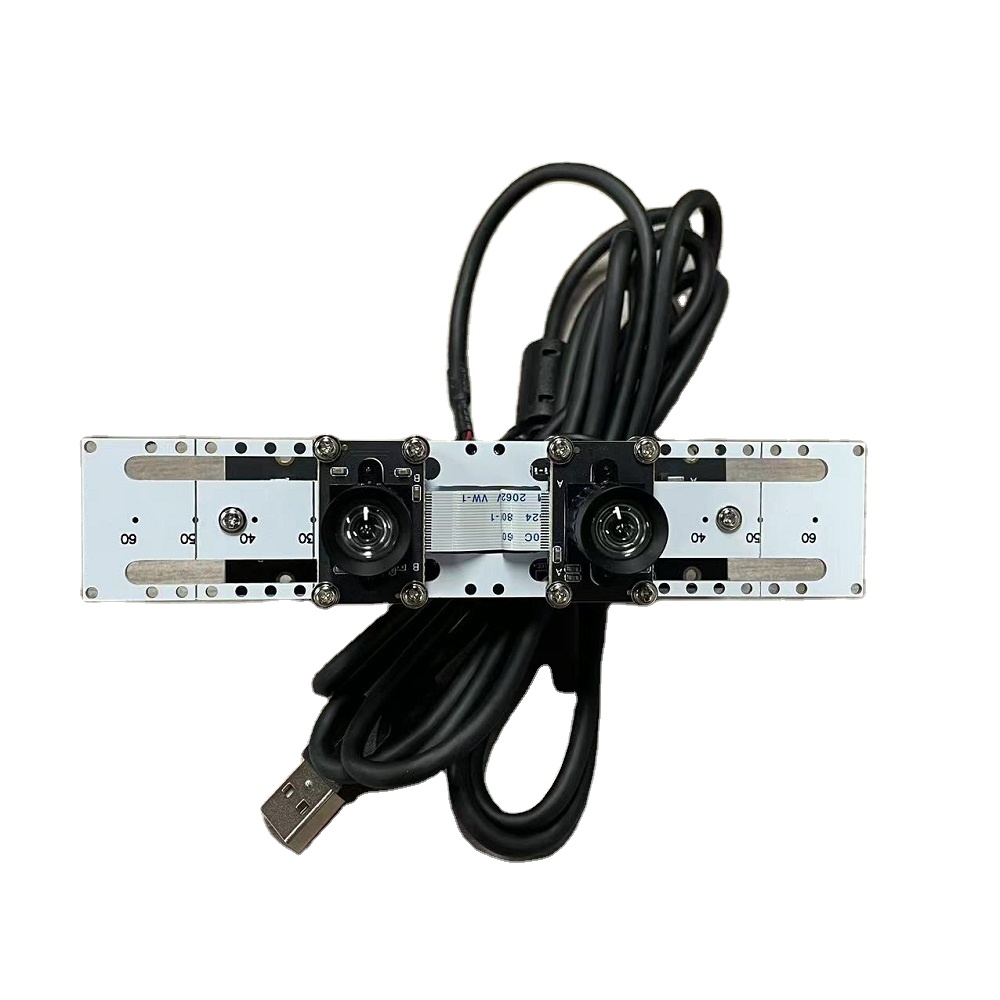

Cable Length

Default 1.2Meter (others upon request)

Supported OS

Win XP/Vista/Win7/Win8/Win10

Linux with UVC (linux-2.6.26 or later)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or higher with UVC



                                                       General

Power Consumption

DC5V (±5%)

Operating Temp.

-10°C~+60°C

Storage Temp.

-20°C~+70°C

Humidity

Less than 80%

Dimension

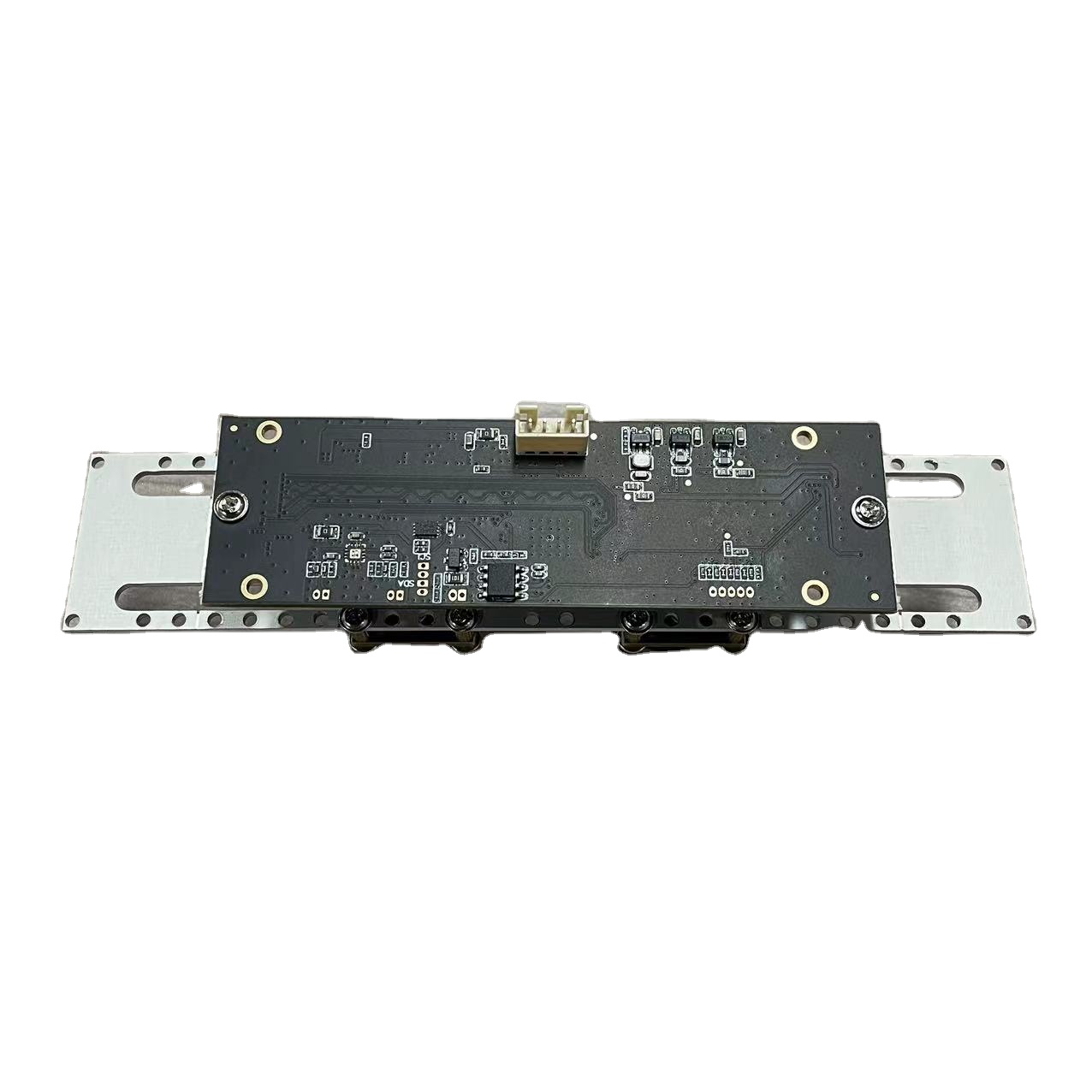

Board 94mm(L)x28mm(W)

Weight

Approx. 200g





Application or Tools

Windows OS

AMCAP etc.

Linux OS

V4L2 etc.

Mac OS

Facetime etc.

Android OS

CameraFi etc.
