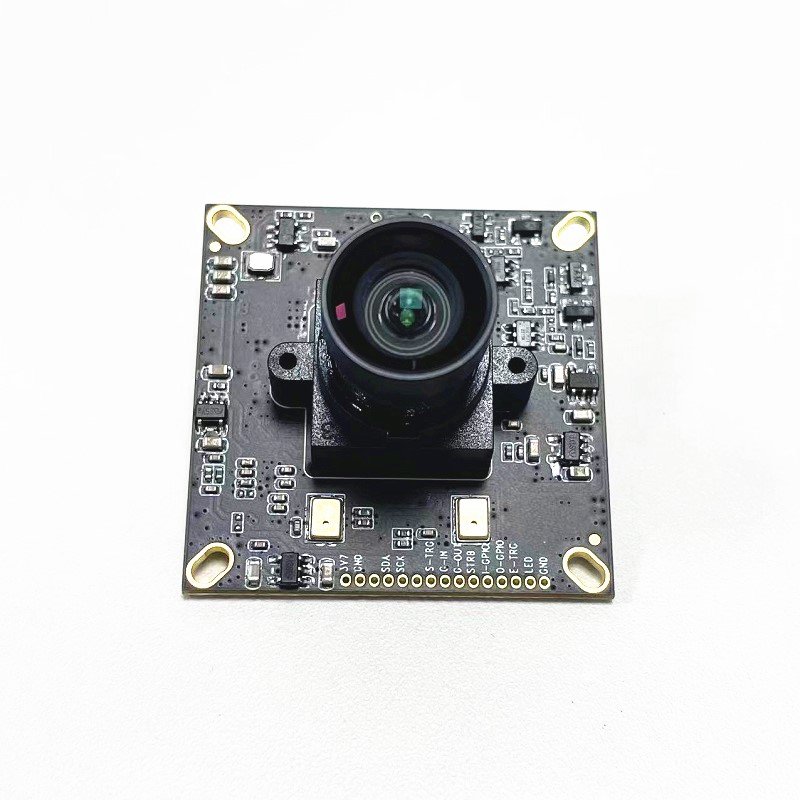

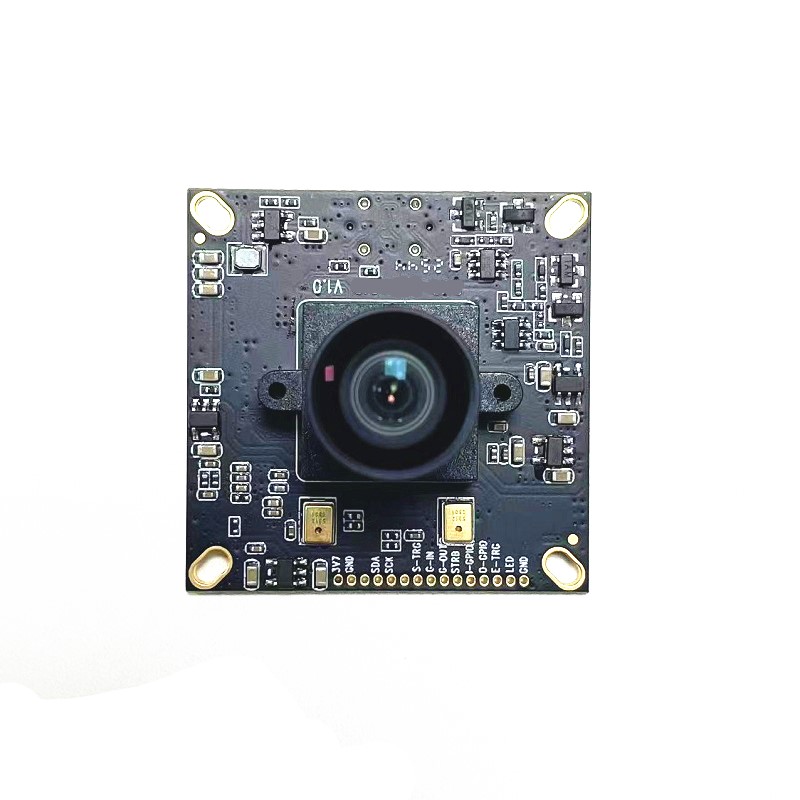

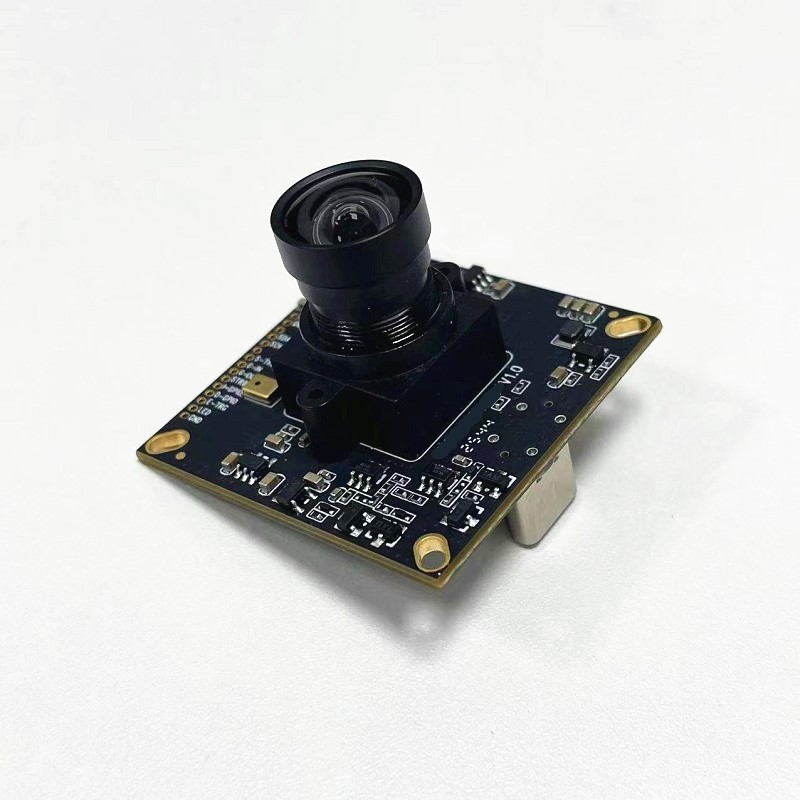

    2.3MP RGB Global Shutter 120FPS USB-C 3.0 Camera Module

    1) 1/2.6 Inch Cmos Global Shutter AR0234 Sensor
    2) RGB Colorful Vision
    3) 2.3MP 1920x1200 @120FPS
    4) Free Driver,Plug&Play


    • 0.00
      0.00
Product Description

2.3MP RGB Global Shutter 120FPS USB-C 3.0 Camera Module

1) 1/2.6 Inch Cmos Global Shutter AR0234 Sensor
2) RGB Colorful Vision
3) 2.3MP 1920x1200 @120FPS
4) Free Driver,Plug&Play


Features


*2.3MP Resolution with Global Shutter 120fps

*Colorful RGB Image Vision

*Support Plug-&-Play

(UVC compliant)  OTG Function.

*High Speed USB-C 3.0

*Small Outline for embedded Application


Specification

Image Device

Cmos Sensor 1/2.6” Onsemi AR0234

Pixel Size

3μm x 3μm

Resolution

2.3MP 1920(H) x 1200(V)


Color RGB Vision

Output Format

MJPEG/YUY2

Shutter Type

Global Shutter

Focus

Manually

Focusing Range

10cm to Infinity

Interface:

USB-C 3.0

Protocol& Connection

Plug-&-Play (UVC compliant)

Frame Rate

1920X1200    MJPEG @120fps  YUY2@80fps

1920X1080    MJPEG @120fps  YUY2@80fps

1280X720     MJPEG @200fps  YUY2@200fps

OTG

Support

Lens

TTL=23.5mm; Optical Distortion Rate:<0.5%;

F/No=2.7;

BFL=3.24mm;

DFOV=92 HFOV=81 VFOV=48

IR-Cut Filter

(IR Filter)

Default at 650nm, custom options 850,940nm.

S/N Radio

38dB

Dynamic Range

71.4dB

Audio

Built-in Ditigal MIC

IR Illumination

N/A

Power Socket

USB-Type-C, USB BUS Power

Cable Length

Default 1.2Meter (others upon request)

Supported OS

Win XP/Vista/Win7/Win8/Win10

Linux with UVC (linux-2.6.26 or later)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or higher with UVC



General

Power Consumption

DC5V (±5%), 150-240mA

Operating Temp.

-10°C~+60°C

Storage Temp.

-20°C~+70°C

Humidity

Less than 80%

Dimension

38x38mm

Weight

Approx. 12 Grams or 0.4 Ounce


Application or Tools

Windows OS

AMCAP etc.

Linux OS

V4L2 etc.

Mac OS

Facetime etc.

Android OS

CameraFi etc.
