    4K 8MP 60FPS High Speed USB-C 3.0 Camera Module

    1) 1/1.8 Inch Cmos Sony IMX678 Sensor
    2) RGB Colorful Vision
    3) 4K 3840x2160 @60FPS
    4) Free Driver,Plug&Play


    • 0.00
      0.00
Product Description

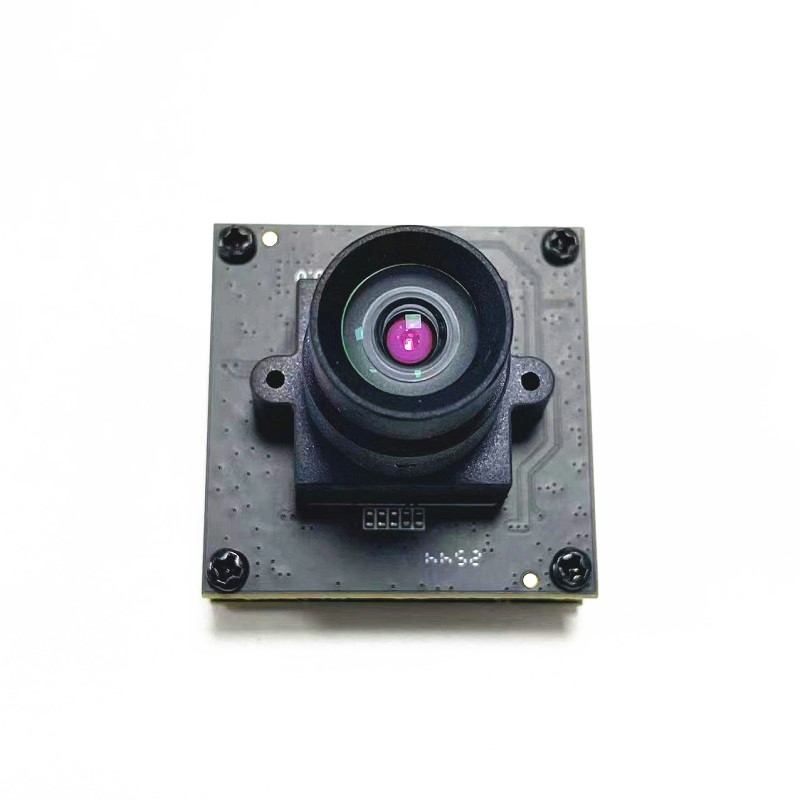

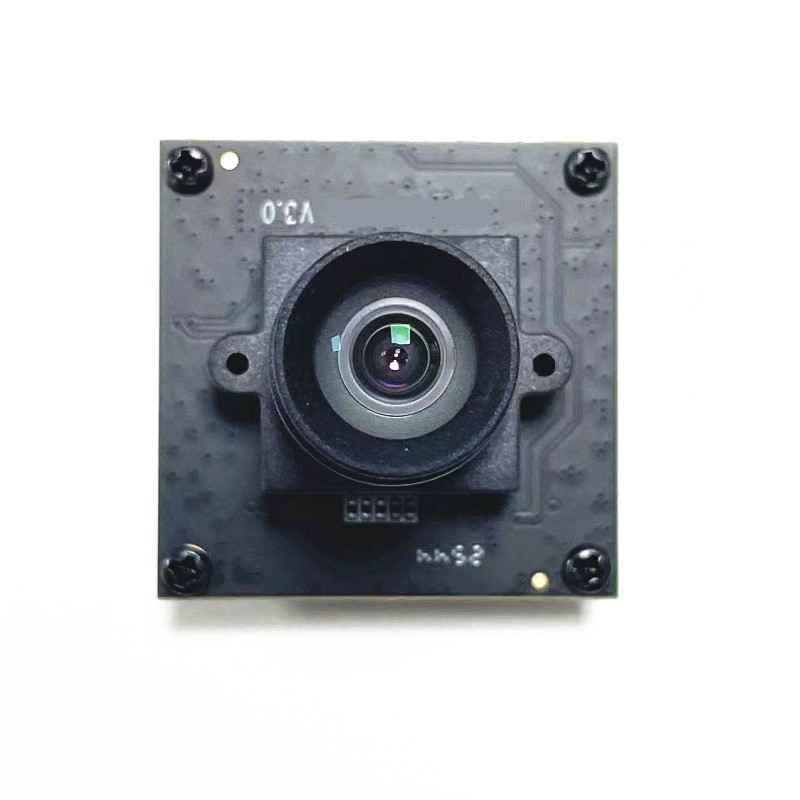

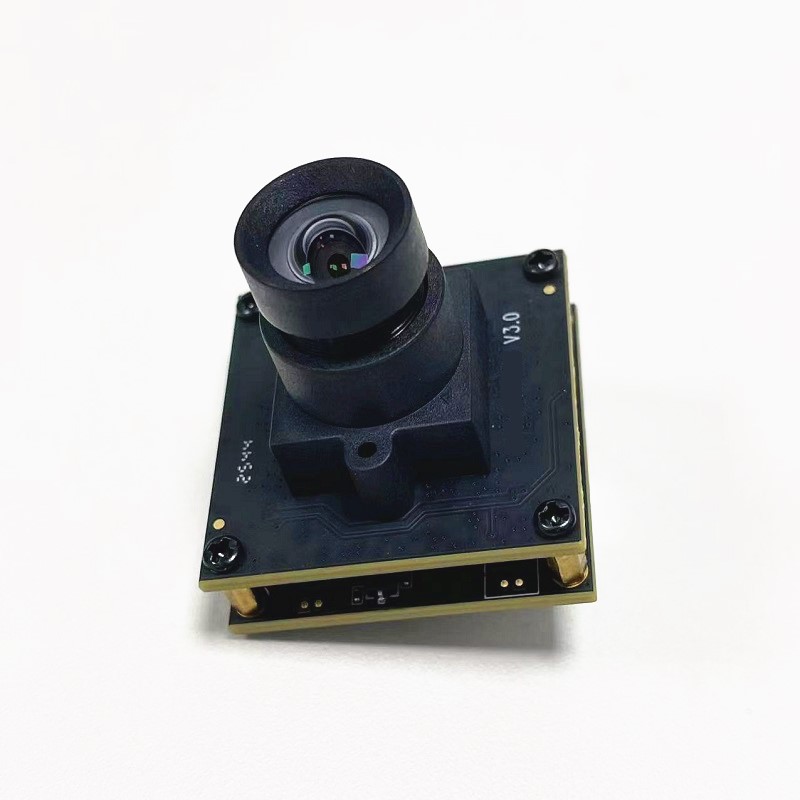

4K 8MP 60FPS High Speed USB-C 3.0 Camera Module

1) 1/1.8 Inch Cmos Sony IMX678 Sensor
2) RGB Colorful Vision
3) 4K 3840x2160 @60FPS
4) Free Driver,Plug&Play


Features


*4K 3840x2160 Resolution with 60fps

*Colorful RGB Image Vision

*Support Plug-&-Play

(UVC compliant)  OTG Function.

*High Speed USB-C 3.0

*Small Outline for embedded Application




                                              Specification

Image Device

Cmos Sensor 1/1.8” Sony IMX678

Pixel Size

2μm x 2μm

Resolution

4K 3840(H) x 2160(V)


Color RGB Vision

Output Format

MJPEG/YUY2

Shutter Type

Rolling Shutter

Focus

Manually

Focusing Range

10cm to Infinity

Interface:

USB-C 3.0

Protocol& Connection

Plug-&-Play (UVC compliant)

Frame Rate

3840x2160    MJPEG @60fps  YUY2@10fps

2592X1944    MJPEG @60fps  YUY2@30fps

2560X1440    MJPEG @60fps  YUY2@30fps

1920X1080    MJPEG @60fps  YUY2@60fps

OTG

Support

Lens

TTL=21.9mm; Optical Distortion Rate:<1%;

F/No=2.8;

BFL=4mm;

DFOV=94 HFOV=86 VFOV=56

IR-Cut Filter

(IR Filter)

Default at 650nm

S/N Radio

2dB

Dynamic Range

72dB

Sensitivity

56 Ke/Lux*s

IR Illumination

N/A

Power Socket

USB-Type-C, USB BUS Power

Cable Length

Default 1.2Meter (others upon request)

Supported OS

Win XP/Vista/Win7/Win8/Win10

Linux with UVC (linux-2.6.26 or later)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or higher with UVC



                                      General

Power Consumption

DC5V (±5%), 280mA

Operating Temp.

-10°C~+60°C

Storage Temp.

-20°C~+70°C

Humidity

Less than 80%

Dimension

32x32mm

Weight

Approx. 12 Grams or 0.4 Ounce



Application or Tools

Windows OS

AMCAP etc.

Linux OS

V4L2 etc.

Mac OS

Facetime etc.

Android OS

CameraFi etc.
